Specifications
| Pumping Capacity | JSBS-3000 20 liter/min
JSBS-5000 40 liter/min. |
| Ultimate Vacuum | 650 mmHg (-0.08 Mpa ABS) |
| Bottle Capacity | 4000 cc |
| Pump Control | ON / OFF / Foot Pedal Switch |
| Material | Body : Epoxy Powder Coated Steel |
| Bottle : Glass | |
| Utility | 50 mm hydrophobic PTFE Disc Filter |
| Silencer | |
| Portable carrying handle | |
| Safety | Automatic pump cut-off when full bottle |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS-1363 |
Models
| Art No. | JSBS-3000 | JSBS-5000 | |
| Pumping Capacity | 20 liter / min. | 40 liter / min. | |
| Ultimate Vacuum | 650 mmHg (-0.08 Mpa ABS) | ||
| Collection Bottle | |||
| Capacity | 4000 cc | ||
| Material | Glass Bottle /w cap | ||
| Utility | Cap with overflow protection cut-off level sensor | ||
| Inlet / Outlet fitting /w cap | |||
| Pump Control | On/ Off / Foot Pedal | ||
| Safety | ∅50 mm hydrophobic inline PTFE filter protects aerosol ingestion | ||
| Automatic pump shut off when bottle is full | |||
| Accessories included | Main body built-in vacuum pump system | ||
| Collection reservoir bottle | |||
| ∅50 mm hydrophobic inline PTFE filter | |||
| Foot Pedal | |||
| Silencer | |||
| Silicone Tubings | |||
| Dimensions | 240 x 370 x 330 mm | 250 x 400 x 330 mm | |
| Electric Requirement | 220VAC 50/60Hz 1P | ||
| Power Plug | CEE 7/7 Schuko or BS-1363 | ||
Features
| Control |
| Vacuum Pump On / Off / Foot Pedal
Overflow cut-off
|
| Construction |
| Durable epoxy powder coated metallic casing
Removable 3000 cc glass suction bottle
|
| Safety |
| Overflow Cut-Off
OVER CURRENT CUT-OFF : Fuse
|
Ordering Information
| Art No. | Descriptions | Capacity | Elec. Req. | Net Wt. | Ship Wt. |

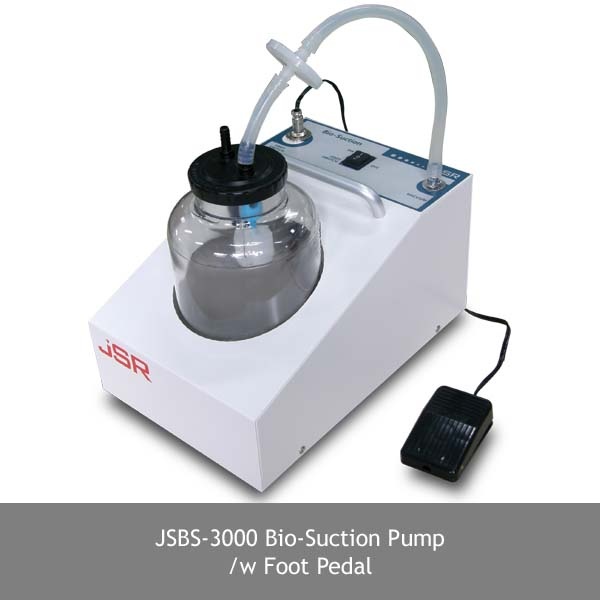

| JSBS-3000 | Bio-Suction Pump | 20 liter/min | 220 VAC 50/60 Hz | 7.3 kg | 8.5 kg |
| JSBS-5000 | Bio-Suction Pump | 40 liter/min | 220 VAC 50/60 Hz | 10.8 kg | 12.0 kg |
