Specifications
| Shaking Motion | : Orbital, 4 mm Stroke |
| Speed Range | : 3,300 rpm |
| Control | : Stepless Analog Variable Speed Control |
| : 3 Position Multi Function Switch [ Continuous / Touch-On / OFF ] | |
| Safety | : Over-Current Cut-Off |
| Material | : Body – Epoxy Powder Coated Aluminum Casting |
| : 3 inch Rubber Platform Head – Engineering Plastic/Synthetic Rubber | |
| : Pop-Off Cup Head – Engineering Plastic | |
| : Remove Applicator – Engineering Plastic | |
| Electric | : 230±10% VAC 50Hz 1-Phase or 230±10% VAC 60Hz 1-Phase |
| Plug config. | : CEE 7/7 Schuko or BS 1363 |
Model
| Art No. | JSVX-7R | |
| Shaking Speed | Range | 0 to 3,300 rpm |
| Motion | Orbital | |
| Stroke | 4 mm | |
| Control | Type | Stepless variable speed control |
| Switch | Multi-Position Continuous, Touch ON, Off | |
| Motor | Brushless Shade Motor | |
| Max. Load & Power | 0.5 kgs, 30 watt | |
| Dimensions | Main Body | W130 x D190 x H120 mm |
| 3” Platform | 86 mm (3 inch) | |
| Pop-Off Cup Head | 50 mm | |
| Material | Main Body | Aluminum Casting /w Powder Coating |
| 3” Platform | Engineering plastic, rubber | |
| Pop-Off Cup Head | Engineering plastic | |
| Applicable Container | All kind of micro tubes or conical tubes | |
| Safety | Over Current Cut-Off | |
| Electrical Requirement | 220±10% VAC 50Hz 1-Phase or 220±10% VAC 60Hz 1-Phase | |
| Power Plug | CEE 7/7 Schuko European Standard or BS 1363 British Plug | |
Features
| Controller |
| Stepless variable speed control up to maximum 3,300 rpm
Three (3) Position Multi-Function Switch allows “Continuous”, “Touch ON” and “Off” control
|
| Construction |
| Durable aluminum casting main body with epoxy powder coating
Suction-Cup type Feet provide strong and stable attachment on the table surface and reduce vibration
|
| Performance |
| Speed control to 3,300 rpm
|
| Convenience |
Various choice of attachments included
|
| Safety |
| OVER CURRENT CUT-OFF : Fuse
|
Ordering Information
| Art No. | Descriptions | Elec. Req. | Net Wt. | Ship Wt. |

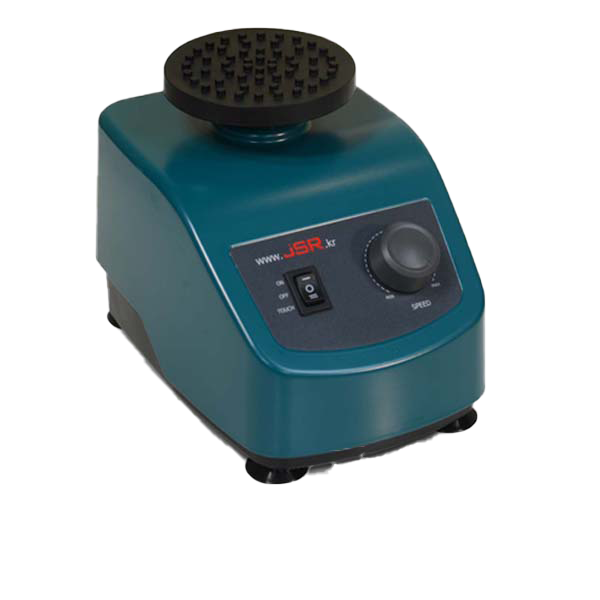

| JSVX-7R1 | Vortex Mixer including
1 ea x 3 inch Rubber Platform Head 1 ea x Pop-Off Cup Head 1 ea x Remove Applicator |
220 VAC 50 Hz | 2.4 kg | 2.9 kg |
| JSVX-7R2 | Vortex Mixer including
1 ea x 3 inch Rubber Platform Head 1 ea x Pop-Off Cup Head 1 ea x Remove Applicator |
220 VAC 60 Hz | 2.4 kg | 2.9 kg |
| Accessories | |||
| Art No. | Descriptions | ||
| PHA-01V | 3 inch Rubber Platform Head | ||
| PHA-02V | Pop-Off Cup Head | ||
| PHA-03V | Remove Applicator | ||
